5 Inch Galvanised Register Plate Kit(5 Inch Galvanised Register Plate Kit)

5 Inch Galvanised Register Plate Kit

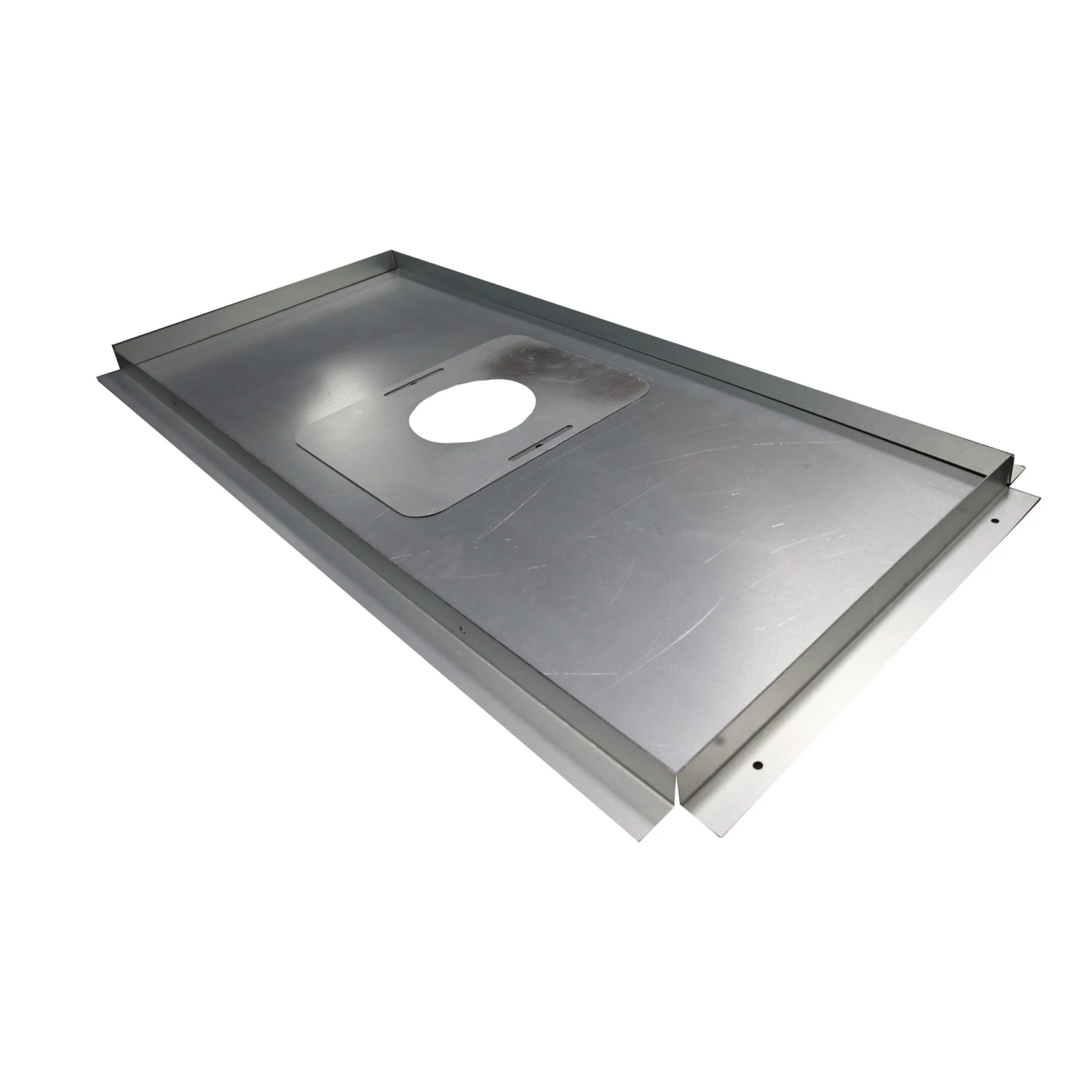

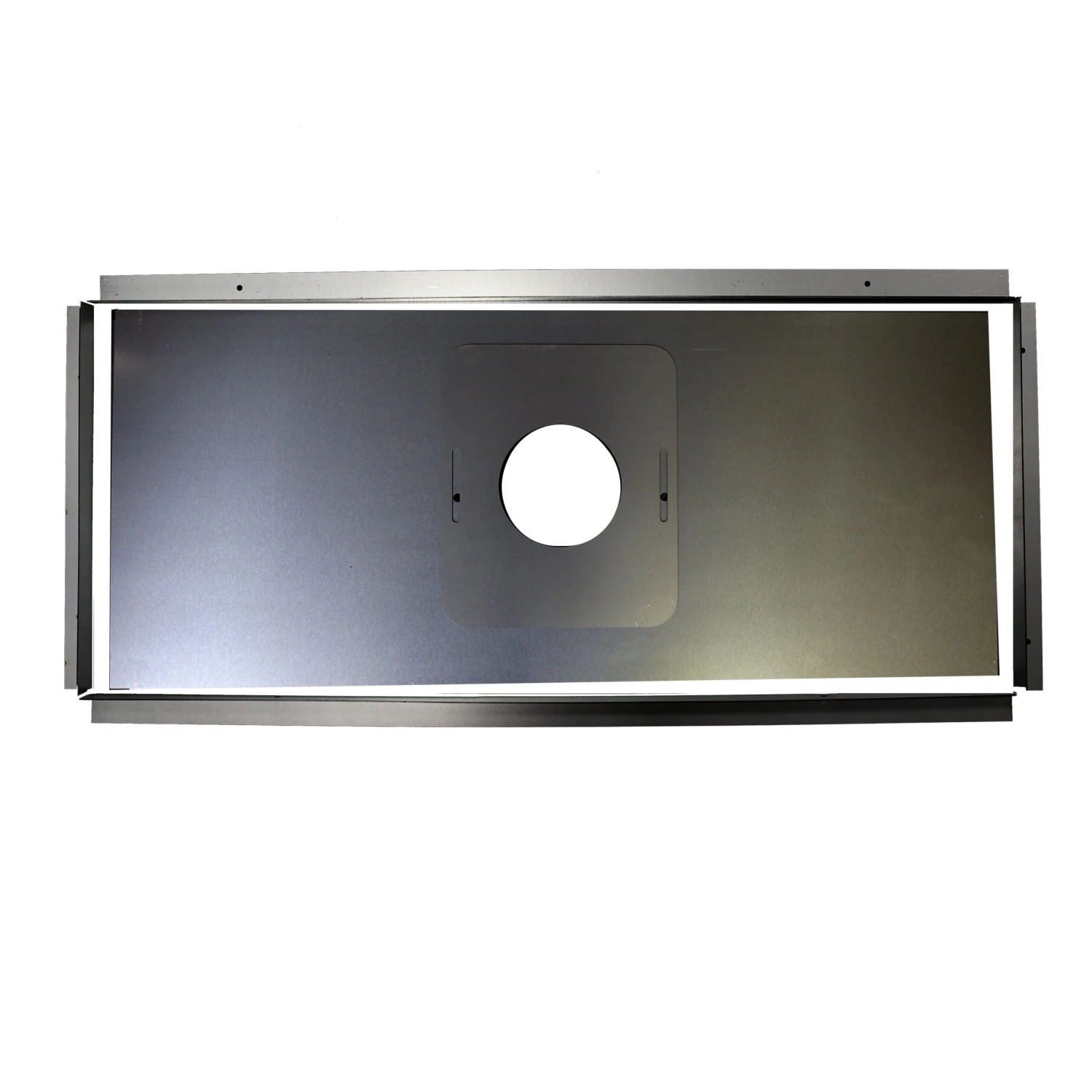

Galvanised steel plate register plate kit ideal for neatly sealing off the top of your stove enclosure. The plate comes with supporting brackets to make fitting easier. It is punched with a 5 inch central hole. The four supporting brackets should be cut to the length and width of the base of your chimney stack. Drill a number of holes in the brackets. Now screw them into the brickwork. Cut the Register Plate to the correct size, taking care that the pipe hole lies vertically above the Black Stove Pipe. Drop the Register Plate onto the supporting brackets. Now seal any gaps between the brickwork and the brackets / plate using Fire Cement or High Temperature Sealant. For 150mm diameter installations simply remove the centre cover ring by unscrewing the two retaining screws.

The Register Plate Kit seals off the bottom of the chimney thereby stopping falling debris and helps with the draw of the fire. This will enable the smoke and other flue gases to rise up and not come back into the room

Dims: 400mm x 950mm

Steel Gauge 1.5mm

Note: The plate is supplied without screws and is coated in a protective film of oil and which should be removed with thinners before painting.
