Baxi Burnall Fire 18 Inch Ashpan(Baxi Burnall Fire 18 Inch Ashpan)

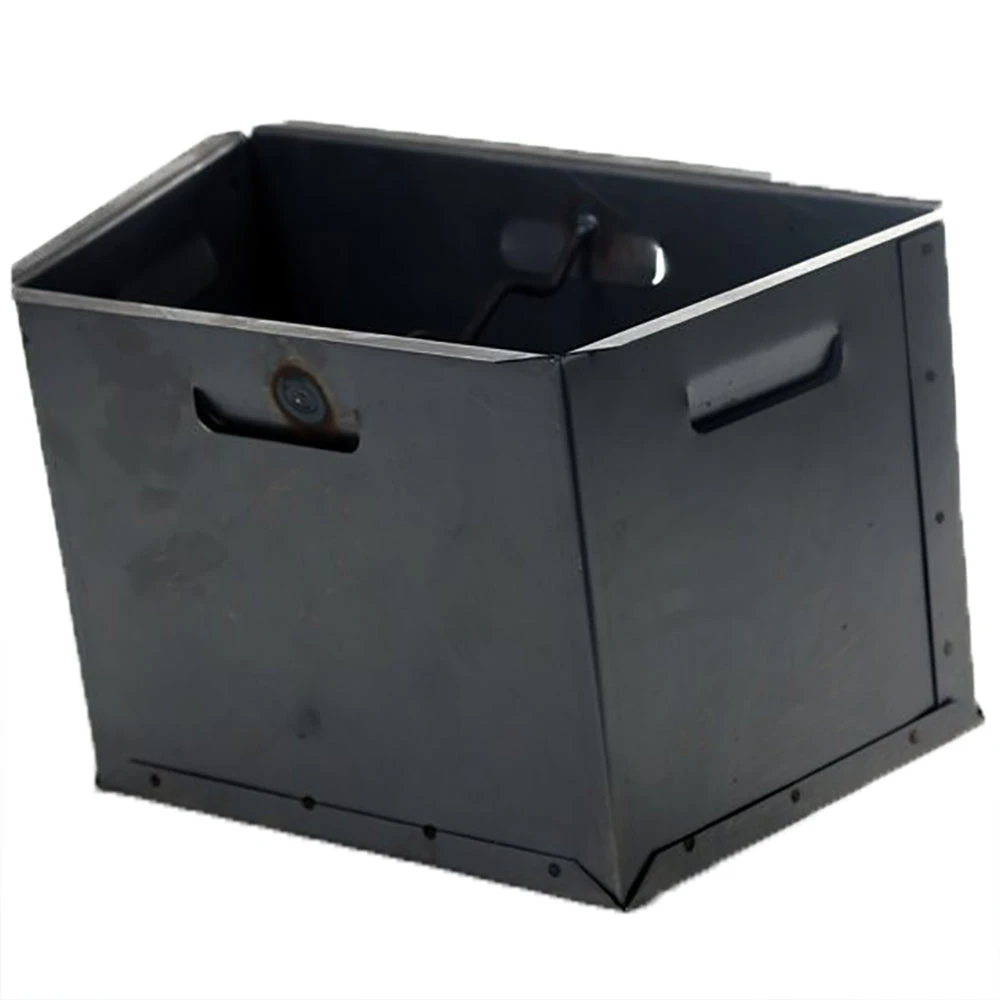

Baxi Burnall 18 inch Ashpan

Replacement lift out ashpan for Baxi Burnall 18 inch fires.

Please note the size 18 inch refers to the width of the baxi fire opening not the actual size of the ashpan, see the dimensions for more clarification on the ashpan dimensions.

Front Width 330mm 13.5 inches

Rear Width 260mm 10.25 inches

Front to Back 190mm 7.5 inches

Height 212mm 8.5 inches

Note that these are measurements of the main ash pan body. The flange at the top of the ash pan adds and extra half inch all round

Width with flange is 350mm 13.7 inches
Depth with flange is 212mm 8.5 inches
