Mazona Ripley 5 KW Baffle Set(Mazona Ripley 5 Kw Baffle Set)

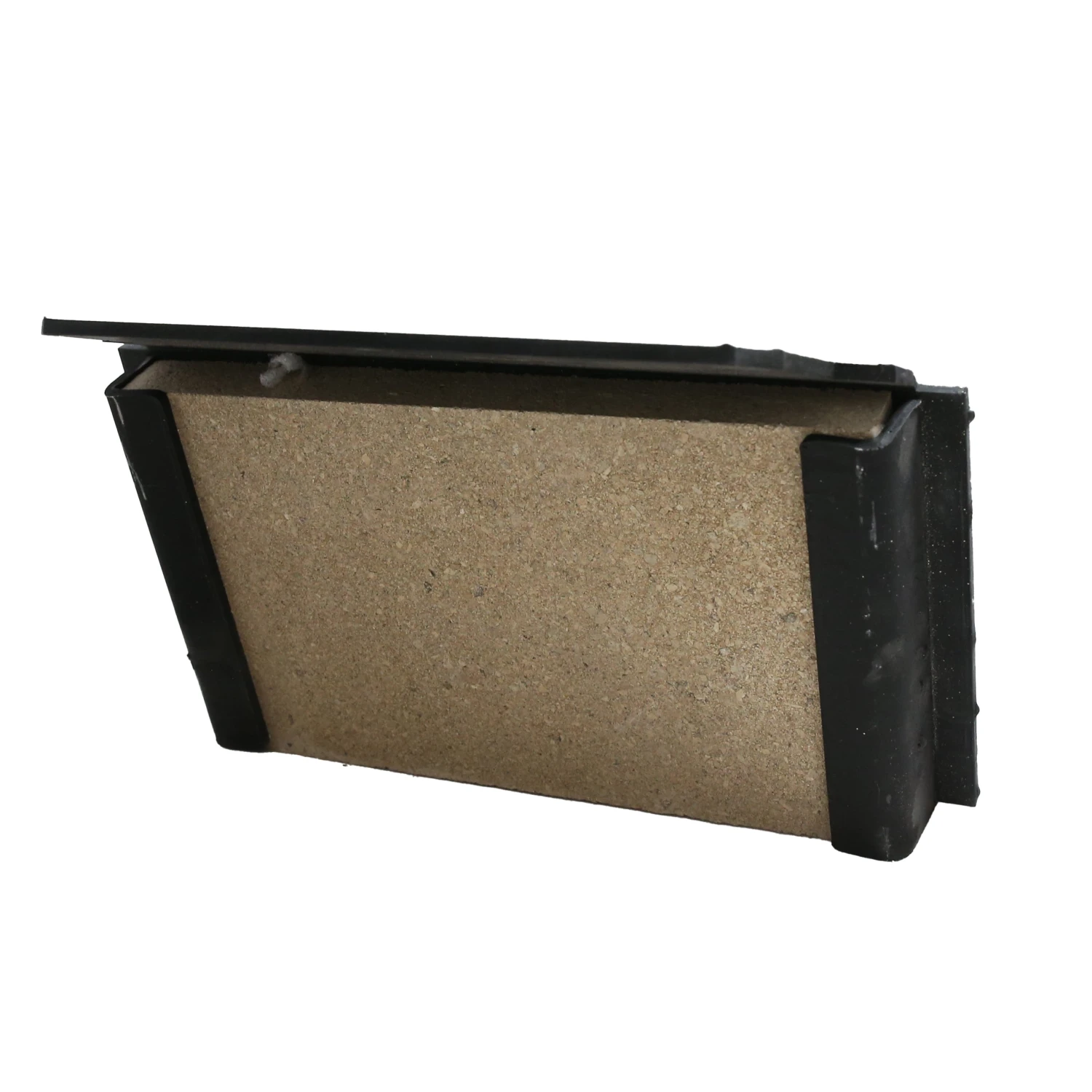

Mazona Ripley 5 kW Baffle Set

Assembly Instructions:

1. Ripley baffle parts – 1 steel baffle plate, 1 vermiculite brick, 2 L-shape brackets, 2 bolts, 2 washers, 2 nuts.

2. Locate the two bolts through the holes in the steel baffle plate, with the threaded section protruding in the same direction as the baffle plate bends. Place the baffle plate on the ground with the two bends and threaded bolt section facing upwards.

3. Place the vermiculite brick on the steel baffle and ensure the slot cut-outs in the brick are positioned so they surround the screws.

4. Place the L-bend brackets on either side of the brick corners and locate the holes in the brackets on to the bolts.

5. Place washers on the bolts.

6. Place and tighten screws on to the bolts and down on to the washers.

7. Assembly completed.
